Industrial ECO Line

The Industrial Line supports full RS232 modem data and control signals and has standard DB9 connectors. Additionally some models support 4-wire RS422/485 as well as 2-wire RS485 using DB9 male connectors and additional terminal block. The metal cases can be easy used for DIN-Rail mounting, the 8- and 16-port versions also fit in a 19" rackmount.

!

USB-COM Eco ISO

634

Features

  • 1 x RS232
  • USB 2.0 Full Speed interface
  • 2.5kV isolation per serial port
  • USB and serial ports ESD protected
  • Robust metal case
  • Serial speed max. 460.8 (500) kbps
  • DIN-Rail and Wall mount options
  • Bus powered, no external power supply
  • Wide range operating temperature (-25°C - +75°C)
  • slim case
!

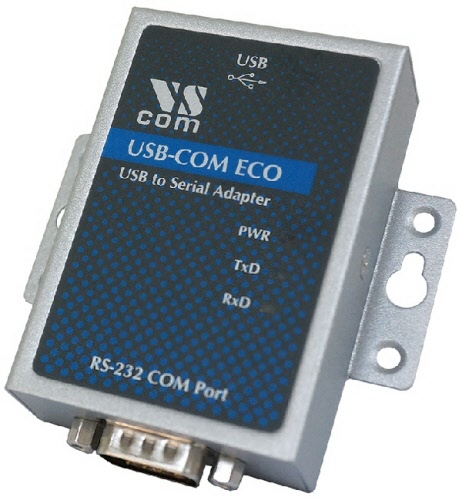

USB-COM Eco

633

Features

  • 1 x RS232
  • USB 2.0 Full Speed interface
  • USB and serial ports ESD protected
  • Robust metal case
  • Serial speed max. 460.8 (500) kbps
  • DIN-Rail and Wall mount options
  • Bus powered, no external power supply
  • Wide range operating temperature (-25°C - +75°C)
  • slim case
!

USB 8COM-ECO

622
    • USB 2.0 to 4/8 x RS232 ports
    • High-Speed serial ports 460.8kbps
    • Driver for Windows, Linux, Mac OS X
    • LEDs for Power/Ready and TxD/RxD activity
    • ESD protection on USB and serial ports
    • Bus powered
    • Ruggedized metal housing
    • DIN-Rail and wall mount options
    • Wide range of operating temperatures



!

USB-2COM Eco

614
  • USB2.0  to 2 x RS232 RJ45  serial adaptor, surge protected,  small metal case,
    DIN-Rail & wall mountable, bus powered.
    2 x RJ45-to-DB9M adapters included.
!

USB-4COM Eco

621
  • USB2.0  to 4 x RS232 DB9  serial adaptor, surge protected,  metal case,
    table & wall mountable, bus powered; Opt: DIN-Rail Adapter
!

Option: DK-Eco 34

6695
DIN-RAIL KIT, 34mm for USB-4COM Eco & USB-8COM Eco
